Tiger 10 V4

Description

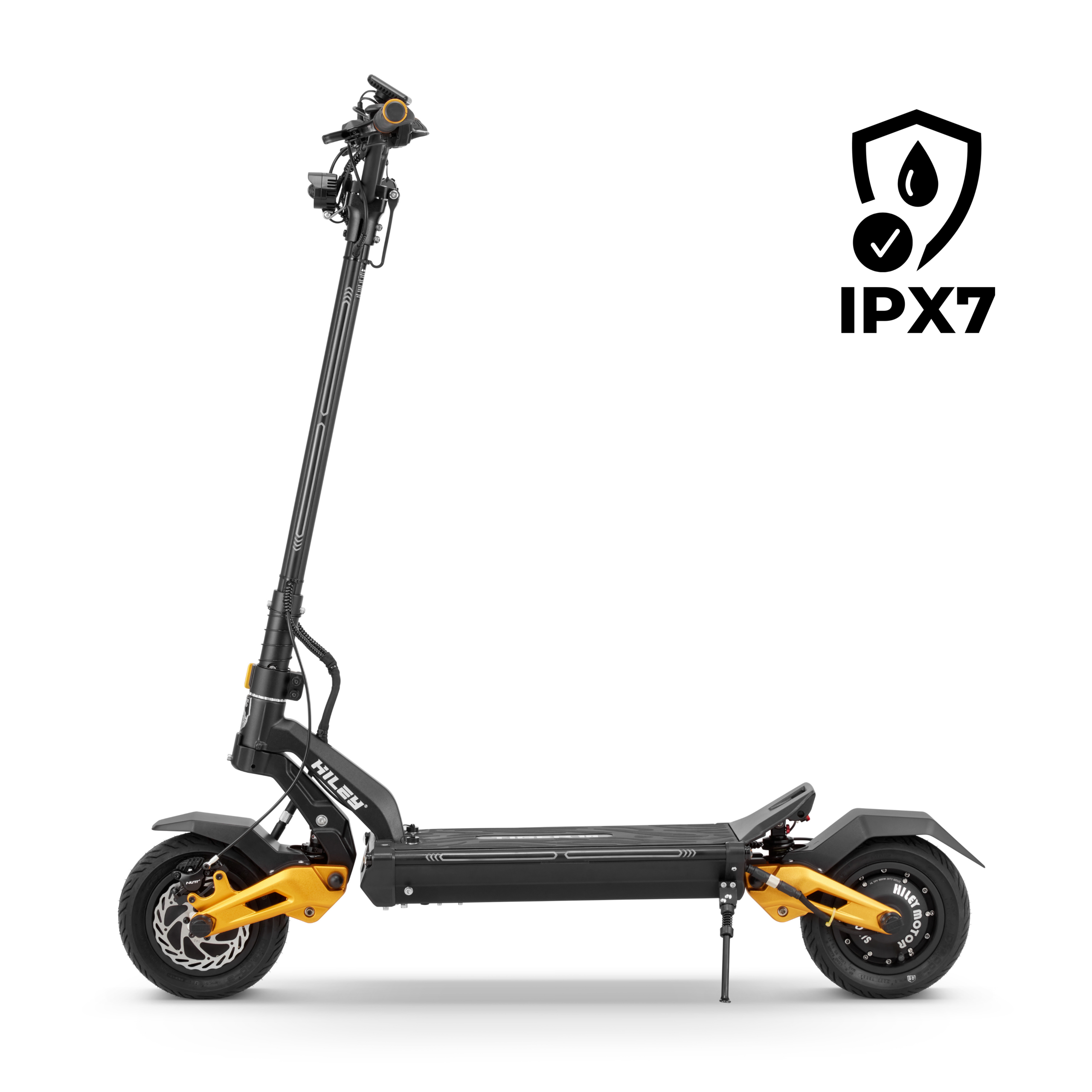

Hiley Tiger 10 V4 electric scooter

This is a continuation of the Hiley Tiger 9 PRO V3 model

The key innovation in the Hiley Tiger 10 V4 is sealed electronics and connectors which gives the scooter an IPX7 waterproof rating. Two ReBound adjustable rebound damping shocks together with tubeless 10-inch wheels make the Tiger 10 the scooter with the best shock absorption on the market. Two 2×1000W motors (3000W peak) with enlarged top speed ensure a dynamic ride and feature waterproof connectors for quick tire changes. Power is provided by high-quality sine-wave controllers which ensures smooth and quiet operation. The design of the LED lighting has also been improved. In addition, the Tiger 10 V4 features black charging ports and an improved front light mount. The battery is made out of branded DMEGC or EVE Li-ion Class A cells.

The Tiger series was designed to satisfy the most demanding customers who expect something more from a scooter. Futuristic design and the latest available solutions put the Hiley brand among the world’s leading manufacturers.

Product photos are visualization only. The color may vary slightly.

Dual hydraulic shock absorption

Enjoy a comfortable ride over bumps with professional shock absorbers with hardness adjustment

IPX7 water resistance

IPX7 rating ensures the functionality of the scooter even in extreme conditions

3000W power

Two powerful 1000W motors with 25A controllers accelerate the Tiger to 70 km/h*.

Top speed

70 km/h (20 km/h)

Maximum range

up to 70 km

Weight

Only 29.5 kg

Maximum load

120 kg

Suspension

Hydraulic front and rear

Tires

10″ tubeless

Folding mechanism

Unique heavy-duty folding mechanism with one strong clip

Advanced TFT display

5 programmable driving modes, motor power control, current on motors, and many other features

Powerful hydraulic disc brakes

Very powerful and efficient hydraulic disc brakes from NUTT with 140 mm disc

Cruise control
Soft/hard start
Instant takeoff
NFC reader
SINGLE/DUAL motor modes
Loud horn
Regenerative breaking
Precise electronics
Fast charging – 2x 2A chargers
Lighting

A powerful lamp at the front, LED lights in the platform, a stop light, and turn signals provide visibility and safety at night.

Side RGB LED strips

It is impossible to pass by Tiger at night, the platform and column are illuminated with striking LED strips, the color and style are changeable through the app.

Specifications

Top speed 70 km/h (20km/h)*
Maximum range up to 70 km*
Power 2 x 1000 W (~3000W peak)
Battery 52V 20.8Ah [1081 Wh]
Product weight 29,5 kg
IP rating IPX7
Charging time 5 – 10 h
Wheel size 10″ x 3
Tire type Tubeless
Brakes Hydraulic disc brakes front and rear, electric
Suspension Hydraulic front and rear
Functions RGB lighting, cruise control, instant takeoff and others
Maximum load 120 kg
Foldable Yes
Handlebars height adjustment No
Dimensions 1320 x 600 x 1215 (length x width x height)
Maximum approach angle 25 – 30°
Lighting Headlight, stop light, platform LEDs, RGB lights
Warranty 2 years for the scooter, 2 years for the battery pack
EAN 5905261313249 / 5905261313256

*Maximum speed and range depends on the driver’s weight, driving speed, temperature and terrain.
