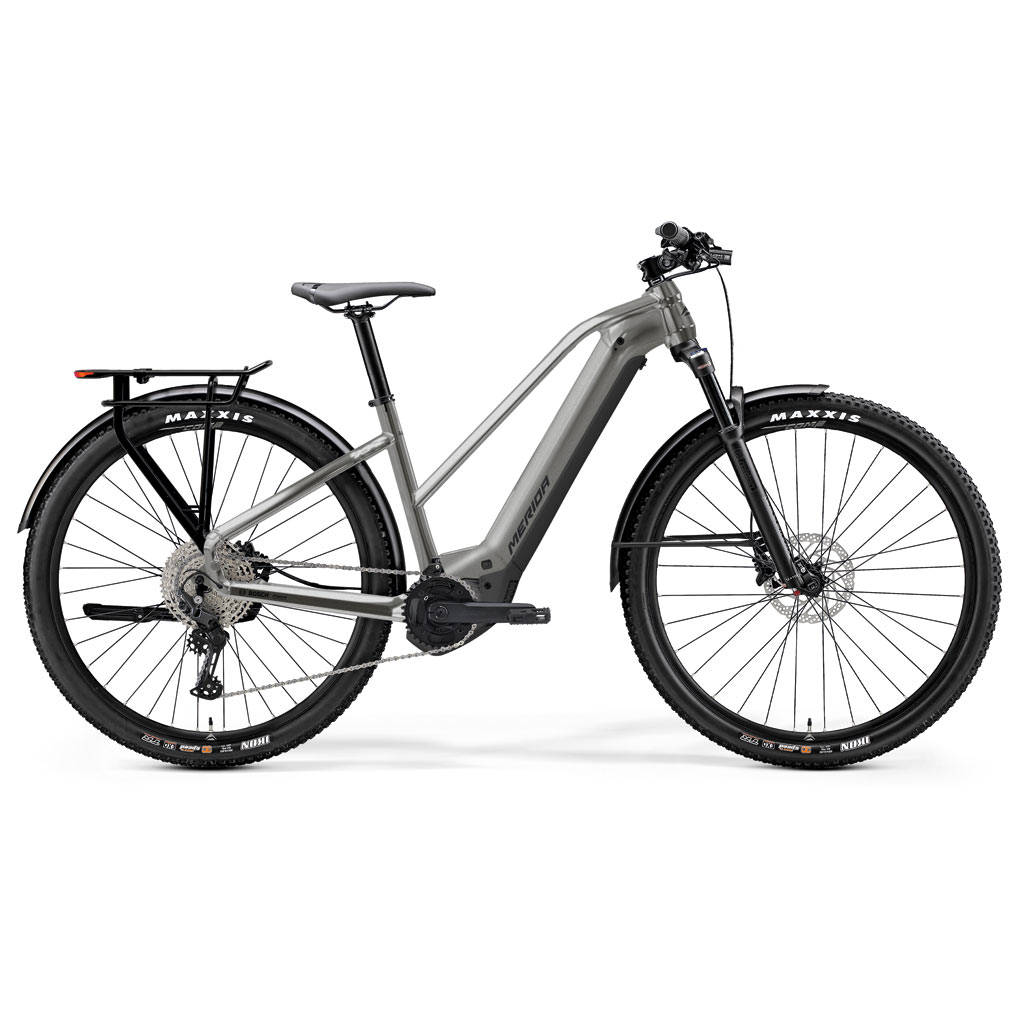

eFloat CC 500 EQ II1 L gunmetal grey(black) /25 Lady

Rahmen

eFLOAT LITE II ; MAT aluminium; 29″x2.4″ with fender max. WHS; 148×12 AST; intube

Gabel

SR Suntour X1-Boost; Air; 120 STR; 29×2.4″ max WHS

Bremse vorne

Shimano MT-200; 2 piston

Bremse hinten

Shimano MT-200; 2 piston

Bremsscheibe vorne

Shimano RT10; 180mm

Bremsscheibe hinten

Shimano RT10; 180mm

C-Housing

MTK700 SP40

Kette

Shimano LG500

Kurbelsatz

FSA Direct Mount Steel Chainring; 38 ATC

Crank/Size

FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes

Schaltung hinten

Shimano Cues U6000; GS

Freilauf

Shimano Cues LG400; 11-48 ATC; 10 GER

Pedal

VP VPE-891

Griffe

MERIDA EXPERT EC

Lenkstange

MERIDA EXPERT; MAT aluminium; 680 WHB; 15 RHB

H-B Stem

MERIDA EXPERT TK III; MAT aluminium; 31.8 DSH;

Stem/Size

S/M/W-S/W-M :70mm,  L/XL/W-L/W-XL :90mm

Steuerkopf

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Compressor

Star Nut

Nabe vorne

Shimano TC500; 15×100 WHF; 32 SPH; Centerlock

Nabe hinten

Shimano TC500; 12×148 WHR; 32 SPH; Centerlock

Axle-R

MERIDA EXPERT TR; including removeable lever, 6/4mm allen key

Felge

MERIDA COMP TR II; 110×15 WHF; 148×12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29″

Sattel

MERIDA EXPERT TK II; V-mount

Sattelklemme

MERIDA EXPERT

Sattelstütze

MERIDA COMP TR IV; 34.9 DSP; 0 SSB; S/M/L/XL: 150 SPT

Schalthebel vorne

Shimano SL -MT500-L (Need to check if SL-MT500-L is competible with LIMOTEC post)

Schalthebel hinten

Shimano CUES U6000-10

Schlauch

Front Lite-29×2.2-2.5, Rear Lite-29×2.2-2.5

Reifen vorne

Maxxis Rekon; 29×2.4″; wire

Reifen hinten

Maxxis Rekon; 29×2.4″; wire

MOTOR

Bosch Performance Line CX

Drive cover

MERIDA Custom Cover for Bosch Performance Line CX eFLAOT

AKKU

Bosch PowerTube 800 ; 800Wh

Akkuhalter

Bosch Guide Rail PT800 Horizontal

Ladegerät

Bosch 4A Charger (220-240V)

Akkuschloss

Abus Key

Speed Sensor

BOSCH Rim Magnet, EB11.200.015 + EB11.200.025

DISPLAY

Bosch Pruion 200
